Pin 3 is considered as the inverting input while pin 3 is considered as the non-inverting input pin. These are the input pins for the operational amplifier.

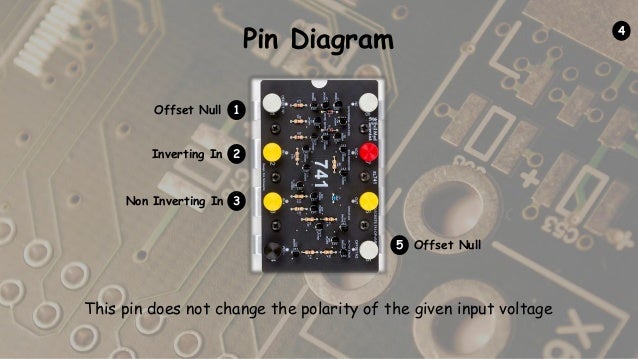

In the same way, when the voltage value at pin 6 is low, this corresponds that output voltage is similar to the -ve supply voltage. When the voltage value at pin 6 is high, this corresponds that output voltage is similar to the +ve supply voltage. The output voltage that is received at this pin is based on the feedback approach that is used and the voltage level at the input pins. The output which is delivered from the IC 741 op amp is received from this pin. The triangular form in the IC signifies an op-amp integrated circuit. The most significant pins are 2,3 and 6, where pins 2 and 3 denote inverting & non-inverting terminals, and pin 6 denotes output voltage. The representation of 741 IC op-amp is given below which comprises eight pins. The IC 741 operational amplifier looks like a small chip. You need to know basic information about this. Various kinds of differential amplifiers include the instrumentation amplifier, the isolation amplifier, the negative feedback amplifier, and the fully differential amplifier. The operational amplifier is one kind of differential amplifier. Operational amplifiers may be packed as apparatuses, or used as fundamentals of more compound integrated circuits. The cost of the several typical op-amps is low in reasonable production volume but some hybrid, integrated op-amps with different performance conditions may cost over 100 dollars. The applications of these ICs include an immense array of industrial, scientific, and consumer devices. Nowadays, operational amplifiers are the most commonly used integrated circuits.
